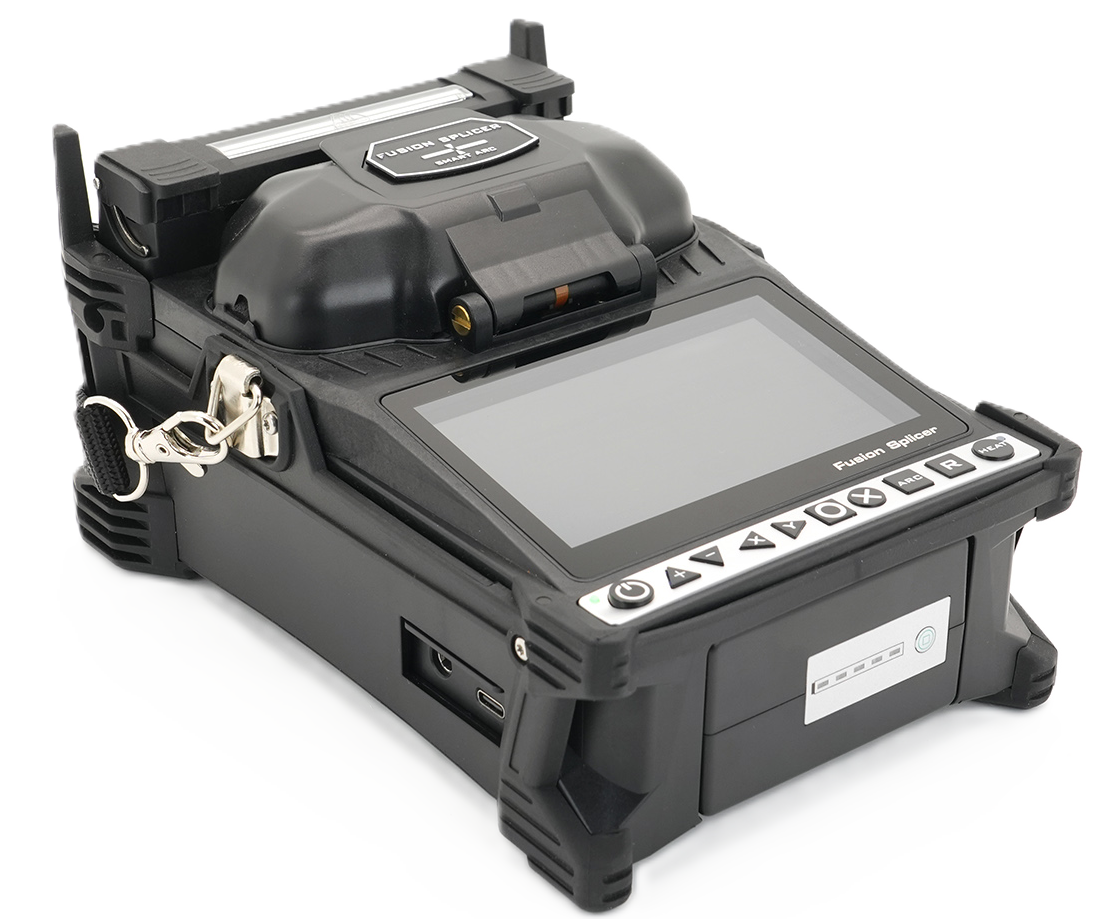

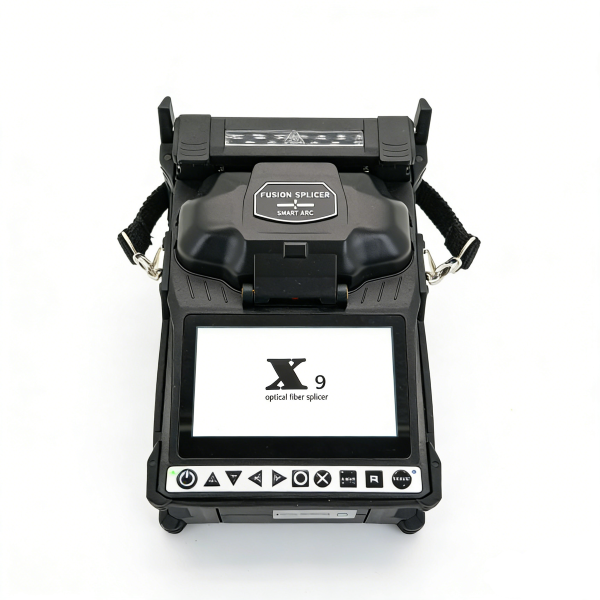

Smart Arc Optical Fiber Fusion Splicer X9

fusion splicer, optical fiber splicing, splicing machine

Next-Generation Fiber Fusion Splicer X9



The next generation fusion splicer X9:

※High Speed Splicing and Heating,

※8 seconds Rapidly Splicing, 16 seconds Quick Heating

※Digital Imaging and Vision Processing Metrology Ensure Great Accuracy

※New Developed Technology for Portable Size and Convenient Multipurpose Clamps






Specification:

Model

X9 single fiber fusion splicer

Monitor

4.3 inches high resolution touch screen

Applicable Fibers

Single/SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655), FTTH drop cable

Average Splice Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Applicable fiber dimensions

Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm

Return Loss

≥60dB

Quick splicing time

8 seconds

Quick heating time

16 seconds

Operate mode

Manual, Auto, Full-auto

Auto-heating

Available

Operating Language

English, French, Portuguese, Spanish, Russian, Thai, Indonesia

Operating Conditions

-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)

Fiber Image Magnification

X & Y Separately Magnification 280 times

Estimated Splice Loss

Available

Cleaving angle detection

Available

Storage of Splice Result

10,000 groups of latest splice results,100 images

Power Supply

Inner lithium battery: 10.95V, 5 Ah, 5000mAh, Up to 250 times splice and heat

Dimensions

130(W)*105(H)*195(D)mm

Weight

1.4 kg(including battery pack)

Standard Package

No.

Item

Quantity

1

Machine X9

1

2

Fiber Cleaver

1

3

Multifunctional Fiber Stripper

1

4

AC Adaptor (Charger)

1

5

Battery

1

6

Spare Electrodes(pair)

1

7

Cooling Tray

1

8

Instruction CD & Quick Reference Guide

1

9

Carrying Case with Carrying Strap

1
